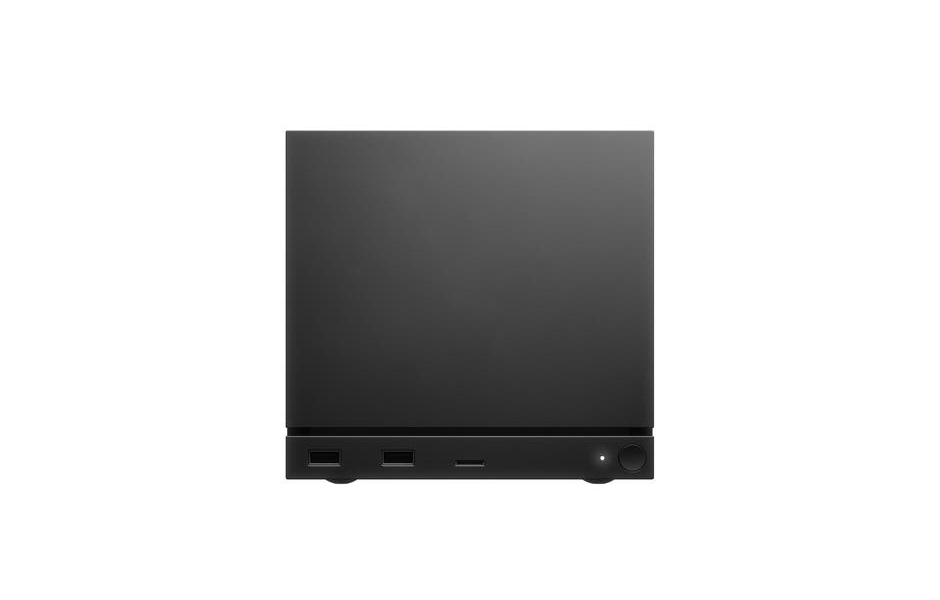

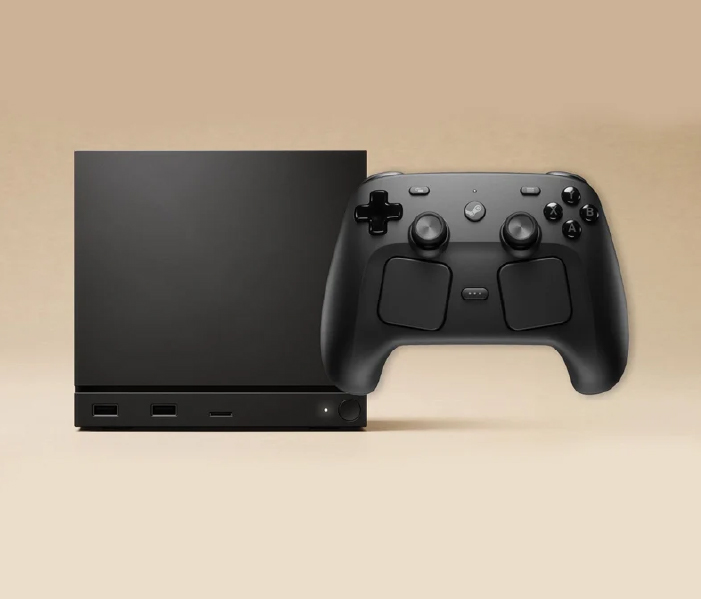

Steam Machine 512GB + Steam Controller

General

CPU

Semi-custom AMD Zen 4 6C / 12T

• up to 4.8 GHz, 30W TDP

GPU

Semi-Custom AMD RDNA3 28CUs

• 2.45GHz max sustained clock, 110W TDP

RAM

16GB DDR5 + 8GB GDDR6 VRAM

Power

Internal power supply, AC power 110-240V

Storage

Two Steam Machine models

• 512GB NVMe SSD

Both models include a high-speed microSD card slot

Connectivity

Wi-Fi

2x2 Wi-Fi 6E

Bluetooth

Bluetooth 5.3 dedicated antenna

Steam Controller

Integrated 2.4 GHz Steam Controller wireless adapter

I/O

Displays

DisplayPort 1.4

• Up to 4K @ 240Hz or 8K@60Hz

• Supports HDR, FreeSync, and daisy-chaining

HDMI 2.0

• Up to 4K @ 120Hz

• Supports HDR, FreeSync, and CEC

USB

Two USB-A 3.2 Gen 1 ports in the front

Two USB-A 2.0 High speed ports in the back

One USB-C 3.2 Gen 2 port in the back

Networking

Gigabit ethernet

LED Strip

17 individually addressable RGB LEDs for system status and customizability

Size and Weight

Size

152 mm tall (148 mm without feet), 162.4 mm deep, 156 mm wide

Weight

2.6 kg

Software

Operating System

SteamOS 3 (Arch-based)

Desktop

KDE Plasma
