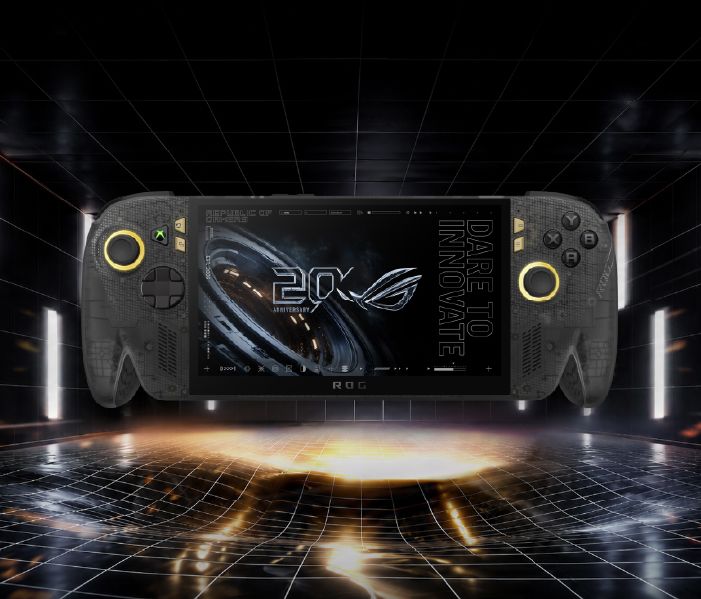

ROG XBOX Ally X20 Bundle

Operating System

• Windows 11 Home

Processor

• CPU: AMD Ryzen™ AI Z2 Extreme Processor

  • 2.0GHz base clock

  • Up to 5.0GHz boost

  • 8 cores / 16 threads

  • 24MB cache

• NPU: AMD XDNA™ up to 50 TOPS

• GPU: AMD Radeon™ Graphics

Display

• 7.4-inch OLED

• Resolution: 1920 × 1080 (FHD), 16:9

• Refresh Rate: 120Hz

• Brightness: 600 nits (SDR) / 1400 nits (HDR)

• 100% DCI-P3 color gamut

• Anti-reflection (AR) display

• Corning® Gorilla® Glass Victus™ + DXC

• Touchscreen: 10-point multi-touch

• Pantone Validated

• Dolby Vision HDR support

• AMD FreeSync Premium Pro

Memory

• 24GB LPDDR5X (onboard)

• Dual-channel support

Storage

• 1TB PCIe® 4.0 NVMe™ M.2 SSD (2280)

I/O Ports

• 1× 3.5mm combo audio jack

• 1× USB 3.2 Gen 2 Type-C (DisplayPort™ / Power Delivery)

• 1× USB4 Type-C (Thunderbolt™ 4 compatible, DP 2.1, PD 3.0, FreeSync support)

• 1× UHS-I microSD card reader (7.1)

Controls & Input

• View button

• Menu button

• Command Center button

• Action button

• A / B / X / Y buttons

• L & R impulse triggers

• L & R Hall Effect analog triggers

• 2× assignable grip buttons

• Transforming D-pad

• TMR joysticks

• 6-axis IMU gyro

• HD haptics

Audio

• Smart Amp Technology

• 2-speaker system with Smart Amplifier

• Hi-Res Audio certification (headphone)

• Dolby Atmos

• AI noise-canceling microphone

• Built-in array microphone

Connectivity

• Wi-Fi 6E (tri-band, 2×2)

• Bluetooth 5.4

Battery

• 80Wh, 4-cell Li-ion (4S1P)

Power

• USB-C 68W AC adapter

• Input: 100–240V AC, 50/60Hz

• Output: 20V ⎓ 3.4A (68W)

Weight

• 756g (1.67 lbs)

Dimensions

• 30.0 × 12.1 × 2.75 ~ 5.13 cm

• (11.81" × 4.76" × 1.08" ~ 2.02")

Security

• Microsoft Pluton security processor

• Built-in fingerprint sensor

Included in the Box

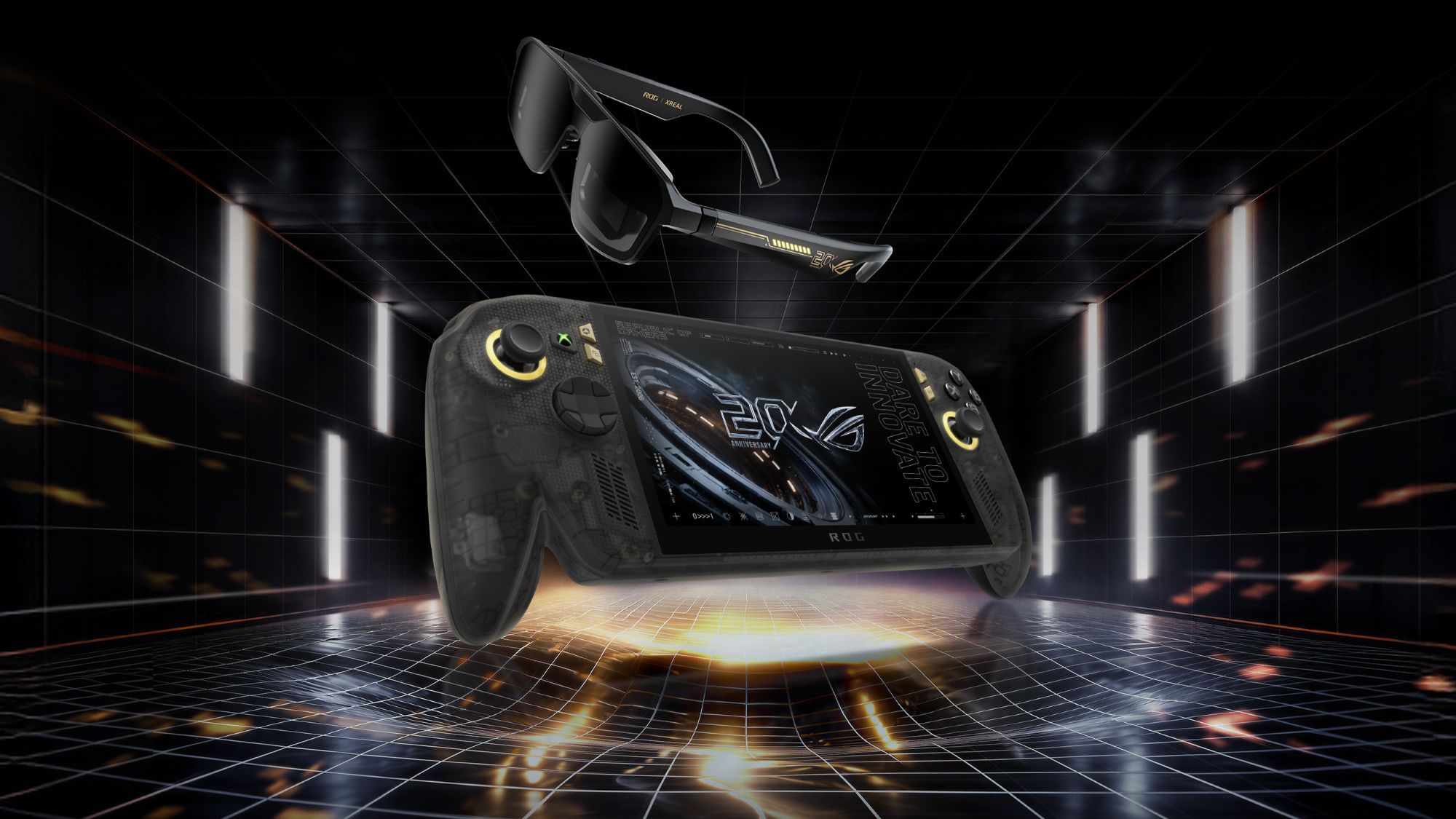

• ROG XREAL R1 Edition 20

• More to be announced
