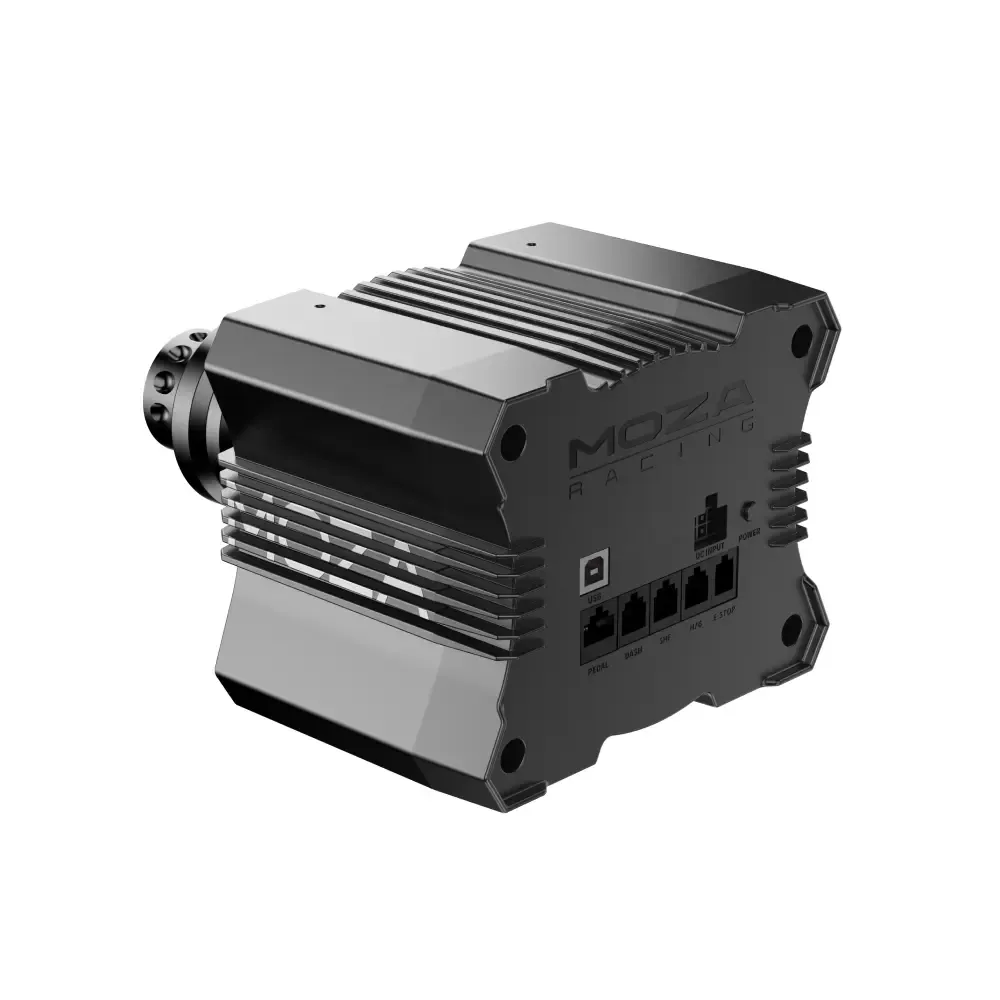

MOZA R9 V3 Direct Drive Wheel Base

The MOZA R9 V3 is the direct-drive wheelbase for racers who take their performance seriously. Delivering 9 Nm of torque from a high-performance servo motor with a 21-bit magnetic encoder, it offers ultra-smooth, highly detailed force feedback. Crafted from aviation-grade aluminum, the R9 V3 combines lightweight design with maximum durability. Featuring intelligent temperature control, an industrial-grade conductive slip ring, and cloud-based mobile app control, it’s easy to tune and operate. Experience complete precision and seamless integration with the MOZA Pit House Control Center, making your setup ready for any sim racing challenge.

MOZA R9 V3 Direct Drive Wheel Base:

Platform: PC
FFB Drive System: Direct Drive
Max Wheel Rotation: 90-2700°
Peak Torque: 9 N·m
Peak Power: 180W
Input Voltage: 110V~220V AC → 36V DC
USB Refresh Rate: 1000Hz
Wheel Base Indicator Light: Supported
App Functionality: Supported (MOZA Pit House & MOZA Mobile App)
Quick Release: MOZA Quick Release
Connection Ports: Power, DC Input, Pedals, E-stop, USB, Dash, Shifter, Handbrake
Firmware Updating: Applicable
Temperature Control System: Intelligent Temperature Monitoring & Active Cooling
Encoder: 21-bit Magnetic Encoder (2,097,152 steps per revolution)
Motor Type: High-performance Servo Motor (18-Slot / 16-Pole Configuration)
Housing Material: Aviation Grade Aluminum Alloy
Color: Black
Mounting: 4-hole bottom mount; optional table clamp and side mounting supported
Table Clamp: Optional
Side Mounting: Optional
Emergency Stop Switch: Optional
Size (L x W x H): 240 × 157 × 124 mm
Accessories: User Manual, Warranty Card, Power Supply, USB Cable, Toolkit
