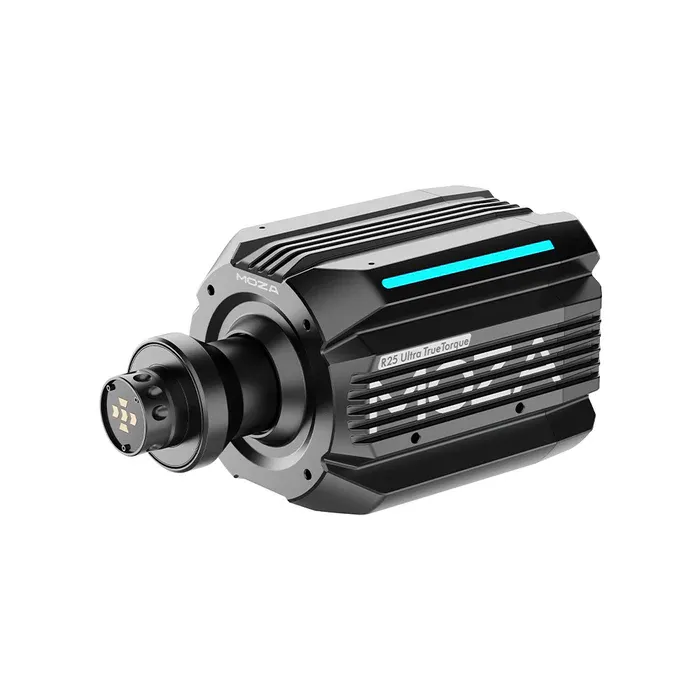

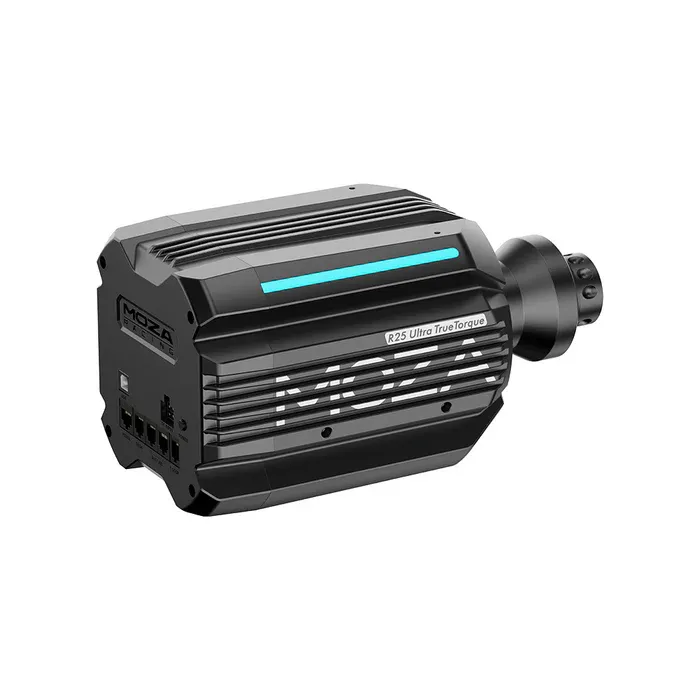

MOZA R25 Ultra True Torque Direct Drive Wheel Base

Unlock pro-level sim racing precision with the MOZA R25 Ultra True Torque Direct Drive Wheel Base. Featuring a 25Nm sustained torque motor, built-in true torque sensor, zero-cogging flat-wire motor, 21-bit magnetic encoder, and advanced FFB algorithm, the R25 delivers unmatched responsiveness, realism, and control for esports and professional racing enthusiasts.

Platform: PC
Drive System: Direct Drive
Encoder Type: 21-bit Magnetic Encoder
Encoder Resolution: 2,097,152 PPR
Maximum Torque: 25 N·m
Rated Power: 378W
Input Voltage: 110V~220V AC → 36V DC
Housing Material: Aluminum Alloy
Rear Cover Material: Plastic
Coupler Material: Aluminum Alloy
RGB Light Strips: 2
Mobile App Functions: Supported
Quick Release: Supported
USB Refresh Rate: 1000Hz
Ports: Power, PC, Pedals, Dashboard, Shifter, Handbrake, Emergency Stop Switch
Accessories: Power adapter, data cable, bolt kit, user manual, warranty card
Mounting Options: Front, side, and bottom mounting supported (optional adjustable bracket available)
Emergency Stop Switch: Optional
Dimensions: 248.8 × 140 × 135 mm
Weight: 9.1 kg
